FTC Starter Kit, 2024-2025 Season (SKU:3200-4008-2425)

Why buy this FTC Starter Kit?

• Ball-Bearing-Based
  Because goBILDA® is ball-bearing-based, your robot will have less friction and more efficiency.
• More Parts, Less Money
  No need to sacrifice quality for quantity. Our steep team discount gets you in the game.
• Better Gear Motors
  Our Yellow Jacket Planetary Gear Motors produce tremendous torque.
• Build it Your Way
  Multiply your possibilities with a variety of channel—from classic U-Channel to Mini Low-Side.

• Mighty REX™ Shafting
  The steel shafts rock our tried-and-true REX™ profile to faciltate incredible positive drive.

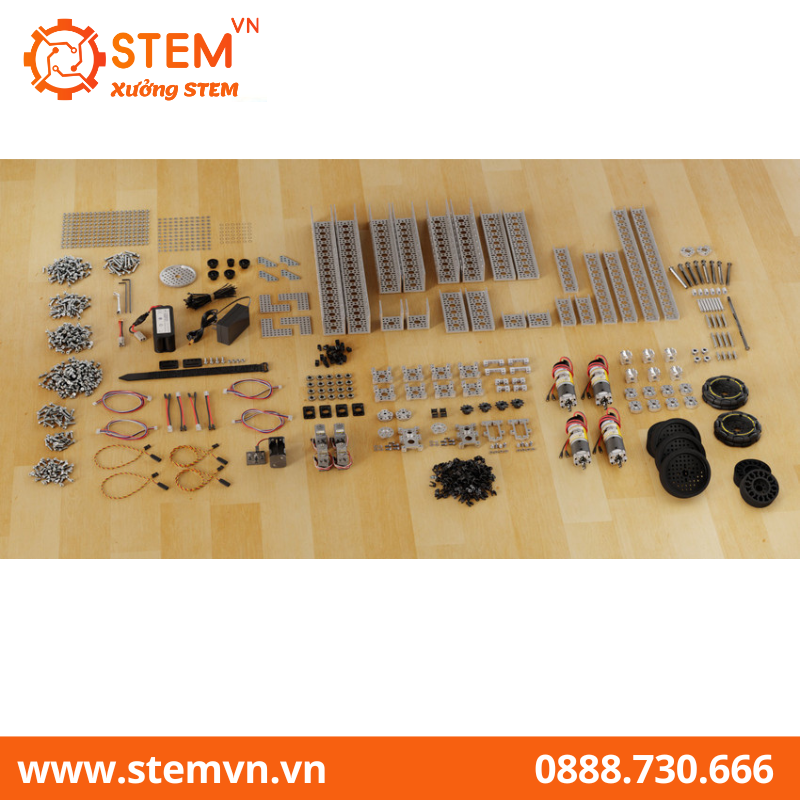

• This Kit Includes:

  Motors:



  Qty: 3	5203 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder)	SKU: 5203-2402-0019 x 3
  Qty: 1	5203 Series Yellow Jacket Planetary Gear Motor (50.9:1 Ratio, 117 RPM, 3.3 - 5V Encoder)	SKU: 5203-2402-0051 x 1

  Motor Wiring:



  Qty: 4	2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)	SKU: 3801-0613-0100 x 4
  Qty: 4	Encoder Cable, 600mm Length (4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC])	SKU: 3801-0709-0600 x 4

  Servos:



  Qty: 2	2000 Series Dual Mode Servo (25-2, Torque)	SKU: 2000-0025-0002 x 2
  Qty: 2	2000 Series Dual Mode Servo (25-3, Speed)	SKU: 2000-0025-0003 x 2
  Qty: 1	Servo Programmer for 2000 Series Dual Mode Servo	SKU: 3102-0001-0001 x 1

  Servo Mounts:



  Qty: 2	Compact ServoBlock™ (Standard Size, H25T Spline, Hub Shaft)	SKU: 3217-0001-2501 x 2
  Qty: 2	1802 Series Servo Frame (43mm Width, for Standard Size Servos)	SKU: 1802-0043-0001 x 2
  Qty: 2	1908 Series Servo Hub (25 Tooth Spline, 32mm Diameter)	SKU: 1908-0025-0032 x 2

  Servo Wiring:



  Qty: 2	3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 300mm Length)	SKU: 3802-1718-0300 x 2
  Qty: 2	3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 600mm Length)	SKU: 3802-1718-0600 x 2

  Battery and Accessories:



  Qty: 1	Matrix 12V 3000mAh NiMH Battery (Includes XT30 to Tamiya Adaptor )	SKU: 14-0014 x 1
  Qty: 1	Battery Charger (NiCad/NiMH, 12-1)	SKU: 3101-0012-0001 x 1
  Qty: 1	Battery Mount (32-1)	SKU: 1209-0032-0001 x 1
  Qty: 100	Zip Tie (100mm Length, Black) - 100 Pack	SKU: 2909-0101-0100 x 1

  Channel:



  Qty: 2	1120 Series U-Channel (1 Hole, 48mm Length)	SKU: 1120-0001-0048 x 2
  Qty: 2	1120 Series U-Channel (10 Hole, 264mm Length)	SKU: 1120-0010-0264 x 2
  Qty: 2	1120 Series U-Channel (11 Hole, 288mm Length)	SKU: 1120-0011-0288 x 2
  Qty: 2	1120 Series U-Channel (17 Hole, 432mm Length)	SKU: 1120-0017-0432 x 2
  Qty: 2	1121 Series Low-Side U-Channel (1 Hole, 48mm Length)	SKU: 1121-0001-0048 x 2
  Qty: 2	1121 Series Low-Side U-Channel (5 Hole, 144mm Length)	SKU: 1121-0005-0144 x 2
  Qty: 2	1121 Series Low-Side U-Channel (10 Hole, 264mm Length)	SKU: 1121-0010-0264 x 2
  Qty: 2	1143 Series Mini Low-Side U-Channel (3 Hole, 96mm Length)	SKU: 1143-0003-0096 x 2
  Qty: 1	1143 Series Mini Low-Side U-Channel (6 Hole, 168mm Length)	SKU: 1143-0006-0168 X 1
  Qty: 2	1143 Series Mini Low-Side U-Channel (10 Hole, 264mm Length)	SKU: 1143-0010-0264 x 2
  Qty: 2	1143 Series Mini Low-Side U-Channel (17 Hole, 432mm Length)	SKU: 1143-0017-0432 x 2

  Brackets and Mounts:



  Qty: 4	1205 Series Dual Block Mount (1-5) - 2 Pack	SKU: 1205-0001-0005 x 2
  Qty: 4	1205 Series Dual Block Mount (2-1) - 2 Pack	SKU: 1205-0002-0001 x 2
  Qty: 4	1137 Series Steel Flat Grid Bracket (1-2) - 2 Pack	SKU: 1137-0001-0002 x 2
  Qty: 8	1201 Series Quad Block Pattern Mount (43-2)	SKU: 1201-0043-0002 x 8
  Qty: 4	Steel Gusset-Plate (3 x 3 Hole) - 4 Pack	SKU: 1126-0090-0001 x 1
  Qty: 25	2902 Plastic Hinge Block (25 Pack)	SKU: 2902-0025-0001 x 1

  Standoffs and Spacers:



  Qty: 8	1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) - 4 Pack	SKU: 1501-0006-0430 x 2
  Qty: 2	1505 Series 32mm OD Counterbored Pattern Spacer (8mm Length)	SKU: 1505-0032-0080 x 2
  Qty: 4	1516 Series 8mm REX Standoff (24mm Length) - 4 Pack	SKU: 1516-4008-0240 x 1
  Qty: 4	1516 Series 8mm REX Standoff (43mm Length) - 4 Pack	SKU: 1516-4008-0430 x 1
  Qty: 4	1516 Series 8mm REX Standoff (48mm Length) - 4 Pack	SKU: 1516-4008-0480 x 1
  Qty: 4	1522 Series 8mm ID Spacer (10mm OD, 12mm Length) - 4 Pack	SKU: 1522-0010-0120 x 1

  Gears:



  Qty: 1	2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth)	SKU: 2302-0014-0100 x 1
  Qty: 1	2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 20 Tooth)	SKU: 2303-4008-0020 x 1
  Qty: 4	2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 30 Tooth)	SKU: 2303-4008-0030 x 4

  Sprockets and Chain:



  Qty: 150	3309 Series 8mm Pitch Plastic Chain Link (50 Links)	SKU: 3309-0108-0050 x 3
  Qty: 4	3307 Series 8mm Pitch Steel Set-Screw Sprocket (8mm REX Bore, 10 Tooth)	SKU: 3307-4008-0010 x 4
  Qty: 4	Acetal Timing Belt Idler (6mm ID x 12mm OD, 12mm Width, 1-1) - 2 Pack	SKU: 3413-0001-0001 x 2

  Wheels:



  Qty: 4	3601 Series Rhino Wheel (14mm Bore, 96mm Diameter)	SKU: 3601-0014-0096 x 4
  Qty: 2	96mm Omni Wheel (14mm Bore, 50A Durometer)	SKU: 3624-0014-0096 x 2
  Qty: 2	3613 Series Gecko™ Wheel (14mm Bore, 72mm Diameter)	SKU: 3613-0014-0072 x 2

  Bearings:



  Qty: 20	1611 Series Flanged Ball Bearing (8mm REX™ ID x 14mm OD, 5mm Thickness) - 2 Pack	SKU: 1611-0514-4008 x 10
  Qty: 4	1616 Series Drop-Center Bearing Plate (2mm Drop) - 4 Pack	SKU: 1616-0016-0002 x 1

  Shafting:



  Qty: 8	2106 Series Stainless Steel REX Shaft (8mm Diameter, 80mm Length)	SKU: 2106-4008-0800 x 8
  Qty: 1	2106 Series Stainless Steel REX Shaft (8mm Diameter, 192mm Length)	SKU: 2106-4008-1920 x 1

  Hubs, Couplers and Collars:



  Qty: 8	1309 Series Sonic Hub (8mm REX Bore)	SKU: 1309-0016-4008 x 8
  Qty: 6	1310 Series Hyper Hub (8mm REX Bore)	SKU: 1310-0016-4008 x 6
  Qty: 4	2920 Series Steel Set-Screw Collar (8mm REX Bore) - 2 Pack	SKU: 2920-0001-4008 x 2

  Screws:



  Qty: 50	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 6mm Length)	SKU: 2800-0004-0006 x 2
  Qty: 200	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length)	SKU: 2800-0004-0008 x 8
  Qty: 100	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length)	SKU: 2800-0004-0010 x 4
  Qty: 100	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length)	SKU: 2800-0004-0012 x 4
  Qty: 25	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length)	SKU: 2800-0004-0014 x 1
  Qty: 50	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length)	SKU: 2800-0004-0018 x 2
  Qty: 25	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 20mm Length)	SKU: 2800-0004-0020 x 1
  Qty: 25	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 30mm Length)	SKU: 2800-0004-0030 x 1

  Nuts, Washers and Shims:



  Qty: 200	2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex)	SKU: 2812-0004-0007 x 8
  Qty: 100	2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD)	SKU: 2801-0004-0008 x 4
  Qty: 36	2807 Series Stainless Steel Shim (8mm ID x 11mm OD, 0.50mm Thickness) - 12 Pack	SKU: 2807-0811-0500 x 3

  Tools:



  Qty: 1	Wera Tools 2.5mm Ball-End Hex-Plus L-Key	SKU: 5027103001 x 1
  Qty: 1	Wera Tools 3mm Ball-End Hex-Plus L-Key	SKU: 5027104001 x 1
  Qty: 1	7mm Combination Nut Driver	SKU: 4206-0070-0001 x 1
